F7522 Linear LED Driver Chip

Dongguan Hongqing Electronic Technology Co., Ltd1
Contact Now

F7522 Linear LED Driver Chip

  • 1
  • 2
  • 3

Brand Name : AOLITTEL

Model Number : F7522

MOQ : 100PCS

Price : Negotiable

Payment Terms : Western Union, T/T

Supply Ability : 100,000,000PCS/Month

Delivery Time : 2 Weeks

Packaging Details : Bulk

Name : Linear Constant Current LED Lighting Driver Solutions

PN : F7522

Max current : 60mA

VAC : 110V/220V

PFC : More than 0.85

P.A.M : Less than 2%

VF : 60V/120V

Package : ESOP-8

Contact Now



F7522 Flicker-free Multi-function Linear Constant Current LED Lighting Driver Solutions With PFC More Than 0.85





F Linear Series Chip Selection Table



NO. P/N Function & Features MOSFET I(mA) LED VF value Package
1 F5111 Constant current temperature reentry, can design high P ripple and low P ripple free, can be used in parallel with high power Internal 60 120/252V SOT-89
2 F5112 100 TP-252
3 F7112 Constant power, temperature foldback, PWM dimming, high and low PFC 100 ESOP-8
4 F7110 High-power linear drive, analog DC dimming, temperature foldback, voltage protection, can be used to design full-voltage operation mode External 350 SOP-8
5 F7722 SCR dimming, can design flat panel lights, bulb lamps, filament lamps E14, E27 and other 12W thyristor dimming Internal 100 ESOP-8
6 F7522 1.VF half-pressure design, input width (160-270VAC) work 2.110/220VAC high P ripple-free design 100 100-150V
7 F2552 1. With F7112 full voltage 12W design 2.VF half voltage rippleless design 3.110/220VAC high P ripple free design 100 120-252 PDFN-8
8 F2722/1 Constant power type can be used in parallel 100 ESOP-8





F Linear Series Chip Matching Selection Table



NO. P/N Function&Features MOSFET I(mA) LED VF value Package
1 3*F7112 Full voltage lamps less than 15W, constant power, temperature reentry Internal 60-100 126/126 ESOP-8
2 3*F7110 High power full voltage constant power high voltage linear scheme External 350 126/126 ESOP-8
3 F7110+F5111/2 High-power linear solution that meets certification requirements External 350 252 SOP-8+TO-252
4 F7111/2+F2552 Full voltage lamps less than 10W, no constant power, temperature reentry Internal 60-100 126/126 PDFN+ESOP+8





Features



Made of 500V high pressure process

Output current up to 60mA

Input AC voltage 110/220V

Achieve wide input voltage range

Realize PDF≥0.85 and no stroboscopic (P.A.M≤2%)

Output VF value 60V/120V

Start overvoltage and overcurrent protection

With temperature foldback -10% / °C function

Instant on short circuit protection

Package form ESOP-8





Application



Suitable for all kinds of LED integrated lamps, such as filament lamps, bulb lamps, downlights, etc.





Application Example

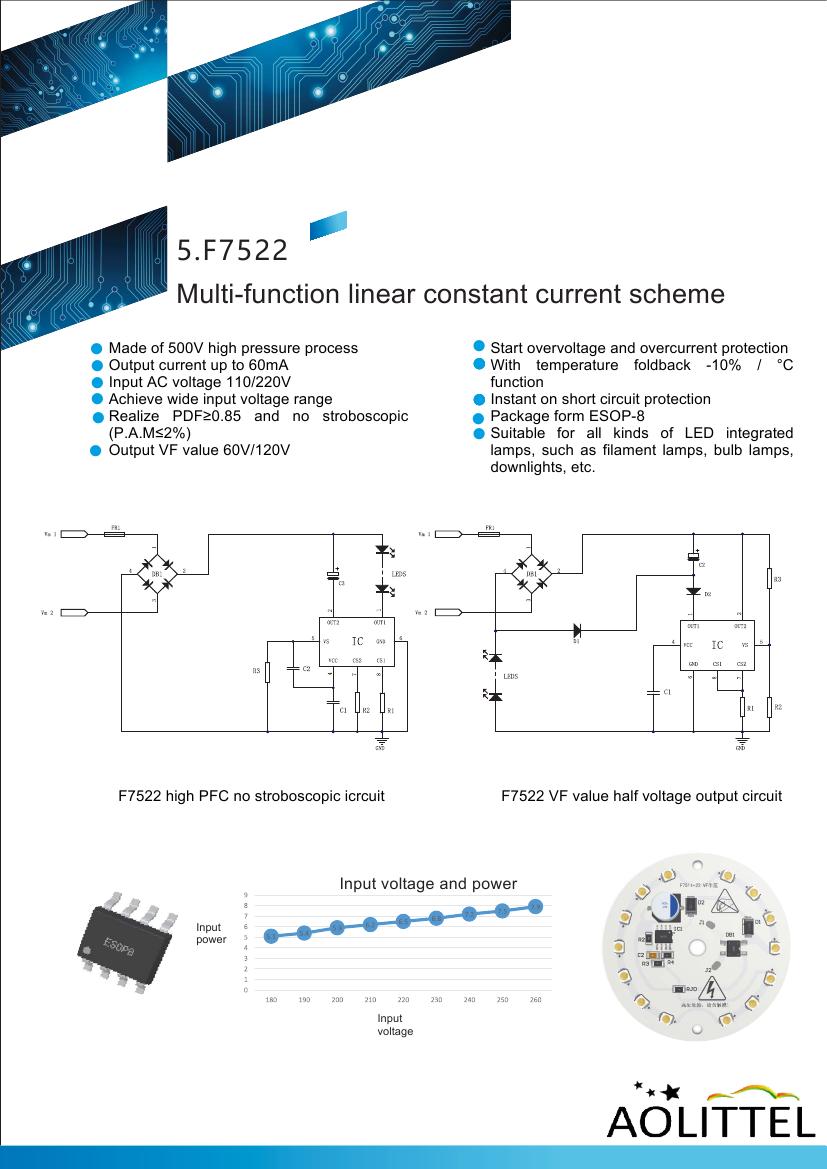

F7522 high PFC no stroboscopic icrcuit

F7522 Linear LED Driver Chip

F7522 VF value half voltage output circuit

F7522 Linear LED Driver Chip
